Yacht cabin 3D scanning scheme
From the prehistoric coffin to the boat, the ship experienced the era of canoes and wooden boats. After the advent of the world's first steel ship in 1879, it began the era of steel ships. The customer is a well-known ship manufacturing enterprise in China. It needs to reverse design and 3D reconstruction of the inspection of the abandoned yacht cabin, and finally lay the foundation for the improvement and processing of the yacht.
Customer background: The customer is a military ship production enterprise with advanced ship manufacturing technology at home and abroad.
Scanned object: 3D scanning of yacht cabin
Measurement requirements: Three-dimensional reconstruction of the cabin scan of the yacht is required for the later improvement and processing of the yacht.
Recommended solution: Handheld 3D scanner HOLON 760+ 3D Photogrammetry System (HL-3DP)
Live field shooting
Practical problems
The cabin of the yacht is huge (about 10 meters long and about 2.5 meters high). It has many curved surfaces and is inconvenient to move. When using traditional 3D scanners, the cumulative error will be too large. How to eliminate the impact caused by errors is the biggest problem. The customer requires high overall precision, fast scanning speed and simple and convenient operation, which is beneficial to the company's later use.

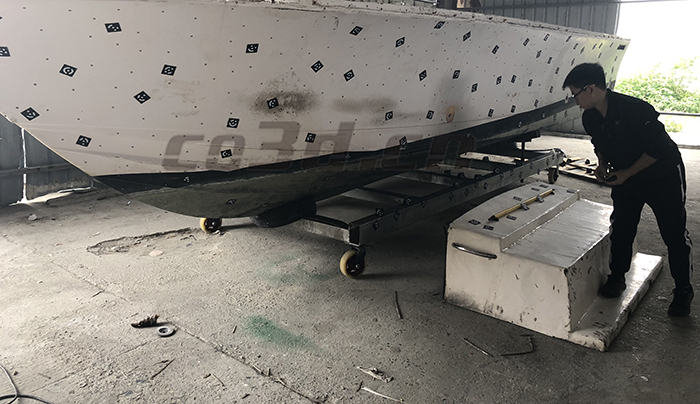

Yacht cabin measurement site
Co3d solutions
According to customer needs and workpiece conditions, Hualang technical engineers quickly gave a solution: using the handheld 3D scanner HOLON760+ 3D photogrammetry system HL-3DP to quickly perform 3D scanning, which can obtain high-precision 3D data of the yacht cabin in a short time, effectively solving The traditional measurement takes a long time and the measurement error is large. The customer is very satisfied with the scanning effect and results of our equipment.
Yacht cabin scanning scene

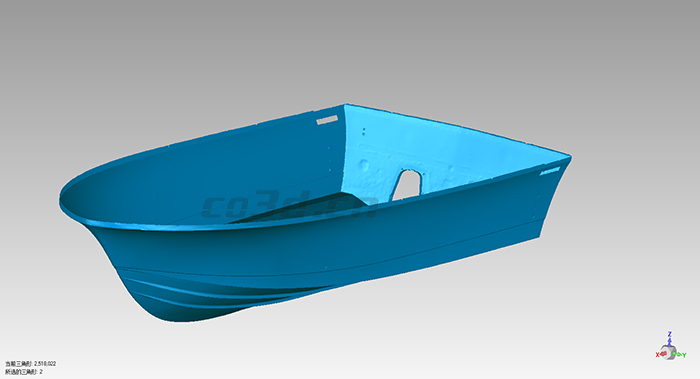

Yacht cabin STL data chart

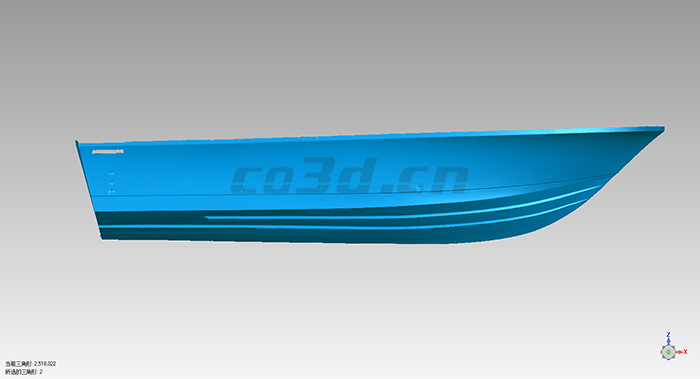

Yacht cabin STL data chart

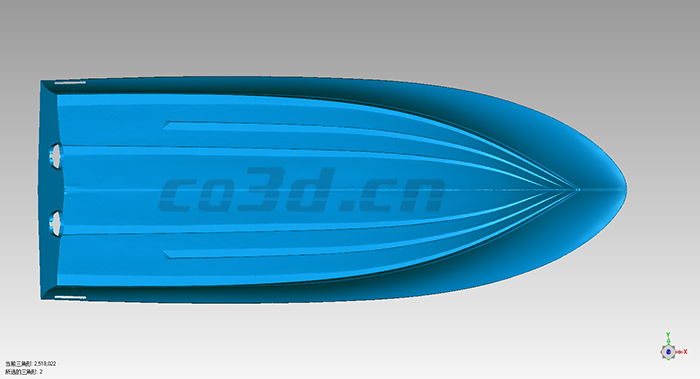

Yacht cabin STL data chart

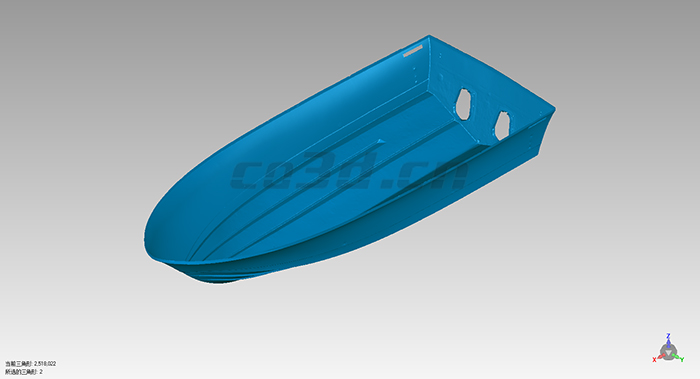

Yacht cabin STL data chart
